Film Packaging Dia 400mm Horizontal Orbital Stretch Wrapper Conveyor

Name: Film Packaging Dia 400mm Horizontal Orbital Stretch Wrapper Conveyor
Brand: MQSPACK
Price: 1 USD

China Film Packaging Dia 400mm Horizontal Orbital Stretch Wrapper Conveyor factory

Brand Name : MQSPACK

Model Number : MH201

Certification : CE

Place of Origin : Hubei Wuhan

MOQ : Negotiation

Price : Negotiable

Supply Ability : 100 sets/month

Delivery Time : 25-30 working days

Packaging Details : wooden case

Type : Horizontal Orbital Stretch Wrapper

Usage : Film Packaging

Voltage : 220V

Power : 1.1kw

Driven : electric

Conveyor speed : 5m/min

Wrapping size : w200mm*h200mm

Control : PLC

Contact Now

Film Packaging Dia 400mm Horizontal Orbital Stretch Wrapper Conveyor

Horizontal Orbital Stretch Wrapper Application

This Horizontal Orbital Stretch Wrapper specialized for packing horizontal objects such as sheets, doors, Floor board, window, furniture… the wrapped package is well-protected & sealed & looks more tidy. The machine can be connecting to the packing line for automatically wrapping.

Horizontal Orbital Stretch Wrapper Specifications

Ring diameter	400mm
Wrapping size	W200mm*H200mm max
Wrapping length	more than 700mm
Rotation speed	25-50rpm variable
Conveyor speed	5m/min variable
Conveyor length	customization
Power	1PH/AC 220VAC,50HZ,20A,1.1KW
Air pressure	0.4-0.7Mpa
Machine dimention	1180720800
Weight	200kg

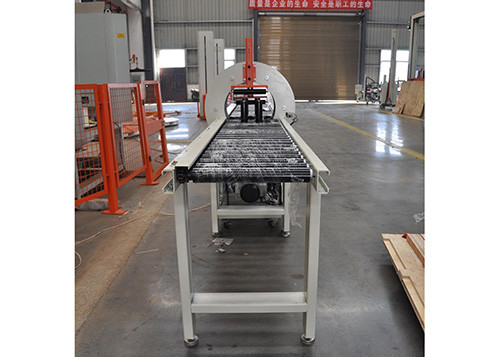

Horizontal Orbital Stretch Wrapper Details

Film Packaging Dia 400mm Horizontal Orbital Stretch Wrapper Conveyor

FAQ

1. What about your wrapping machine quality?
We are the manufacturer with 20 years of experience; all our machine already get SGS and CE certificate; already exported into many countries and areas; already exported into many countries and aress; already got many customer's reputation.
2. What about your wrapping machine price?
Anytime we will make quality as factory life, no matter price is good or not for us.Quality is first, on the top quality basis. Sure you will get reasonable and satisfied price.
3. Can you send me the video to show how the machine work?
Certainly, we have made video of every machine and uploaded them by our chain address.Please contact with us, we will send you machine video.
4. What about your installation service and sales service for wrapping machine?
(1) Guarantee is one year, we will supply spare parts or send engineer to your side if you need, we will give you service anytime, 24 hours, 7 days.
(2) We already prepare technical manual and operation video to show our customers, then it will be easy to install and use the machine.
(3) It is free to train your worker in our factory or in your side or by video.
